Axiomtek releases Pico-ITX SBC with ultra slim design

July 10, 2017

Axiomtek has released its PICO313, a palm-sized fanless pico-ITX motherboard featuring the low-power consumption Intel Pentium processor N4200 or Celeron processor N3350, according to a press release. The 2.5-inch pico-ITX embedded board runs fanless, supporting +12VDC power input, slim I/O and extended temperature range. It has one 204-pin DDR3L-1867 SO-DIMM socket supporting system memory up to 8 GB.

One full-size PCI Express Mini Card slot with support of mSATA and one half-size PCI Express Mini Card slot are available on the rear side of the board. Additionally, a pair of expansion connectors provides signals for one PCIe lane, one LPC, one DDI, four USB 3.0 ports, one SMBus and one HD audio to meet different communications needs. The 2.5-inch embedded SBC PICO313 is designed for a variety of applications in the IIoT-driven world.

"The 100 x 72 mm PICO313 was designed for special needs of fanless operation under a temperature from -20°C to +70°C (-4°F to +158°F) for space-constrained embedded applications and in the harsh environment," Ken Lin, a product manager of the Product PM Division at Axiomtek, said in the press release. "The lower power 2.5-inch embedded board is to be shipped with an AX93A07 I/O board for flexible I/O choices with less cabling and complexity. The quad-core embedded platform model name has been optimized to meet the application requirements of system integrators."

The Intel Apollo lake-based pico-ITX single board computer comes with advanced connectivity, including one USB 2.0 port, one Gigabit Ethernet (built-in Intel Ethernet controller i211AT), one SATA-600 interface, 4-channel digital in/out and one LVDS. To ensure reliable operation, it offers a watchdog timer, hardware monitoring and TPM 1.2 support. The PICO313 supports "AXView" remote management software, facilitating communication over its I2C interface and functions including battery status monitoring.

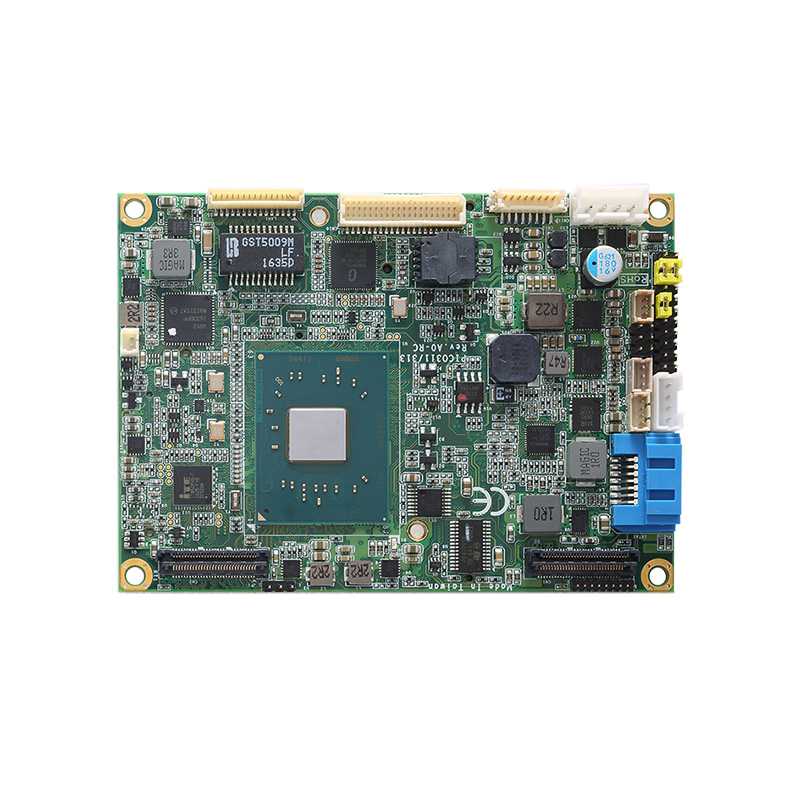

Photo courtesy of Axiomtek.
