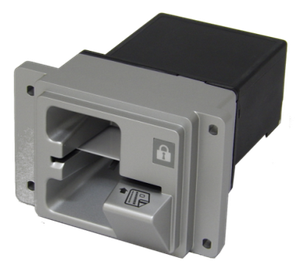

PCI Approved Secure Card Reader
The ICM330-3R96B0 is a PCI PTS POI Version 6.1 Approved Card Reader. Nidec Instruments now also supports DUKPT Key Management Service for this PCI Ver. 6.1 compliant reader.
Specifications:
- Power: 12 VDC
- Interface: RS232C and USB
- Magnetic Stripe: ISO/IEC 7810, 7811, 7813 read only track 1, 2, & 3
- IC Contact Block: ISO/IEC 7816, EMV Version 4.3 Level 1 Approved
- SRED Compliant
- UL Listed Device
- Functions Provided: ICCR, MSR, SRED
Applications:
- Unattended Payment Terminals
- Fuel Dispensers
- Retail POS Terminals
- Vending Machines
- Parking Meters
- Kiosk Terminals for outdoor use
Features:
- Unit Life: Greater than 1.2 Million Passes
- Security levels comply with PCI-PTS requirements
- IC card protocol handling for ISO and EMV Ver. 4.3 Level 1
- Weather resistant for outdoor use IPx5 Level
