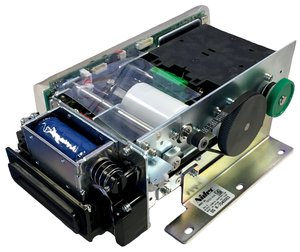

Motorized ID Card Scanner
This scanner is equipped to capture cards and provide a full color dual-side scan all in one pass. Built for self-service terminals, this product is perfect for any indoor kiosk where ID verification and validation is needed for applications for access control, guest registration, hotel check-in, player loyalty and more.
General Specifications
- Power Supply: +24 VDC
Power Connector - Molex 22-05-1042 - Communication: USB I/F, mini-B type
- 1D/2D barcode reading
- Magnetic card data reading
- Host OS: Windows XP SP2 and SP3 and Windows 7 (32 and 64 bit)
- Product Life: 200,000 transactions or 7 years
- (1 transaction is as follows Card Load – Transfer – Image Scan – Transfer – Eject/Capture)
- Warranty: 1 year from delivery
- Authentication Software Available through recommended partners
Related Standards:
- ISO/IEC 1443
- ISO/IEC 7810, 7811-1, -2 and -6
- USB2.0 compatible
- OPOS MSR version 1.10
- RHOS compliant
- AAMVA
